AquaMatic Mid to Large Powerboats - 40-80ft

Previous

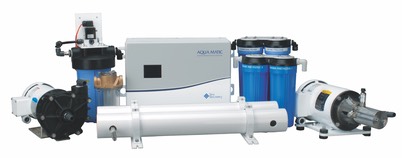

AQM-Modular AQM-leftAngle









AQUA MATIC - KEY FEATURES

The revolutionary Aqua Matic is engineered to be easier to use and more reliable than conventional watermakers. Featuring the latest technology, the Aqua Matic is able to regulate and monitor functions without the need of an operator. With one touch, the Aqua Matic will start and finish water production automatically, allowing boaters more time to relax and enjoy their cruise.



NMEA 2000 Remote Compatibility

The new Aqua Matic is NMEA 2000 compliant, giving you the power to monitor and communicate with your system through any NMEA compatible display.*



One touch operation and full color touch scree

Equipped with an automated pressure regulating system and Fresh Water Flush, the Aqua Matic can fully operate and perform self maintenance functions without the need of an operator.




Oil free high pressure pump (optional)

The Aqua Matic's Super Duplex Radial Axial Pump is water lubricated and requires no oil changes. It has a maintenance schedule every 8,000 hours, saving you time and money.

*Check with your display manufacturer for compatibility.


AUTOMATED FUNCTIONS

•One-touch automation eliminates the need for an operator's attention.

•Automatic pressure regulating system - allows the watermaker to balance pressure levels automatically based on any water condition.

•Weekly automatic fresh water flush timing and sequential starting of electric motors with manual override.

•Automatic shut down, either time duration or product quantity.


METERS / MONITORS

•Hour Meter for keeping accurate ship's logs & schedule preventative maintenance.

•New solid state electronic flow meters for visual monitoring of the product water and feed water flow used to calculate production rates of the system.

•Digital and bar graph Salinity Meter shows actual product water quality, an essential tool for product water monitoring.

PUMPS

•Exclusive high efficiency booster pump for extended pre-filter life.

•Uses a high pressure plunger pump that has a typical maintenance schedule every 2,000 hours.

•Available as an option: Patented High Pressure Quintiplex Radial Axial Plunger Pump is water lubricated, does not require oil changes and operates 8,000 hours between required maintenance.

•State-of-the-art high pressure pump is manufactured with a highly corrosion and erosion resistant Duplex material which provides protection far beyond 316 stainless steel.

•Quiet high pressure pump runs smooth and is free of pulsations.


ACCESSORIES

•Full color remote control touch pad available

•Optional Soft Motor Starter is available for single phase AC powered systems that reduces start up power by 60%.

•Clear viewable Sea Strainer with a cleanable Monel Mesh Screen filter for ultimate corrosion resistance and large particulate removal.

•Charcoal Filter Assembly, Commercial Prefilter, Oil Water Separator, pH Neutralizer, and Automatic Fresh Water Flush are included when requested at the time of order.


NMEA 2000 COMPATIBILITY

•Optional NMEA 2000 compliace interface

•View and monitor system controls through any NMEA compatible display*. You can even start up and shut down your system from your remote display.

•Optional NMEA remote control display available


FULL COLOR TOUCHSCREEN INTERFACE

•Computer interface ready

•Simple-to-use touch screen displays pictorial images of all operating conditions.

•Digital and bar graph readout of all system conditions in U.S. Standard or Metric.

•Ability to display in multiple languages


MATERIALS

•Dedicated heavy duty Magnetic Latching Relays for each motor integrated in the system.

•316 Stainless Steel Pressure Transducers for accurate measurement of system functions.

•New High rejection / high yield membrane element that produces higher quality product water in a smaller space.

•Fiberglass Reinforced High Pressure Membrane Vessel is stronger and eliminates corrosion.


SAFETY

•A failsafe Product Water Diversion Valve

•Unique Low Voltage Control Circuitry, shielded terminals, and covered high voltage components for end-user safety.


SERVICE AND MAINTENANCE

•The Aqua Matic is shipped from the factory ready to install and function.

•There are no optional items required, and a complete installation kit is also included along with a comprehensive and detailed Owner's Operation & Maintenance Manual.

•Worldwide Service and Sales Network for immediate attention regardless of location•Technical service dedicated to excellent system performance
